Super Aluminum Substrate 12W 1917 3 In 1 RGB Led Cob Chip 1919 Cob Led Chips
1917 3 In 1 RGB Led Cob Details
The RGB color model belongs to an additive color model. In this model, the primary colors of light, namely red, green, and blue, are combined in diverse manners to generate a wide variety of colors. Its name is derived from the first letters of these three additive primary colors.
The principal aim of the RGB color model is to facilitate the sensing, representation, and display of images within electronic systems like televisions and computers. Moreover, it has also found application in traditional photography. Even prior to the advent of the electronic age, the RGB color model had a robust theoretical foundation, which was rooted in human color perception.
* Dimension 19.0 mm×19.0 mm×1.5 mm
* Wide viewing angle : 120°
* RoHS compliant
* Sulphation corrosion resistance
* Manual Soldering
* The White LED which was fabricated using a blue chip and phosphor

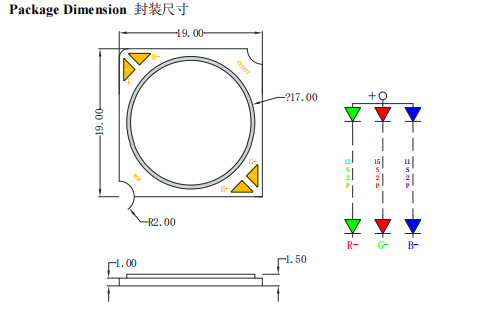

1917 3 In 1 RGB Led Cob Package Dimension
25 PCS/Tray
4Tray/ESD Shieding Bag:100pcs
1917 3 In 1 RGB Led Cob Specification
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃
|
Electrical - Optical Characteristics at Ta=25℃
| Type | Symbol | Test condition | Value | Unit |
| | | | Min. | Typ. | Max. | |
| WaveLength(B) | λd | IF=300mA | 457.5 | -- | 465 | nm |
| WaveLength(R) | λd | IF=300mA | 620 | -- | 630 | nm |
| WaveLength(G) | λd | IF=300mA | 520 | -- | 530 | nm |
| Luminous Flux(B) | φv | IF=300mA | 120 | | 210 | LM |
| Luminous Flux(R) | φv | IF=300mA | 600 | | 800 | LM |
| Luminous Flux(G) | φv | IF=300mA | 800 | | 1000 | LM |
| Forward Voltage(B) | VF | IF=300mA | 34 | | 36 | V |
| Forward Voltage(R) | VF | IF=300mA | 34 | | 36 | V |
| Forward Voltage(G) | VF | IF=300mA | 34 | | 36 | V |
| Power(B) | PD | IF=300mA | | 12 | | W |
| Power(R) | PD | IF=300mA | | 27 | | W |
| Power(G) | PD | IF=300mA | | 12 | | W |
| Thermal resistance | Rth(j-s) | IF=300mA | -- | -- | 0.85 | ℃/W |
Optica Characteristic curve
1917 3 In 1 RGB Led Cob Application
- Flood Lighting
- Photography Lighting
- other lighting area
