4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

Shenzhen Huanyu Dream Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

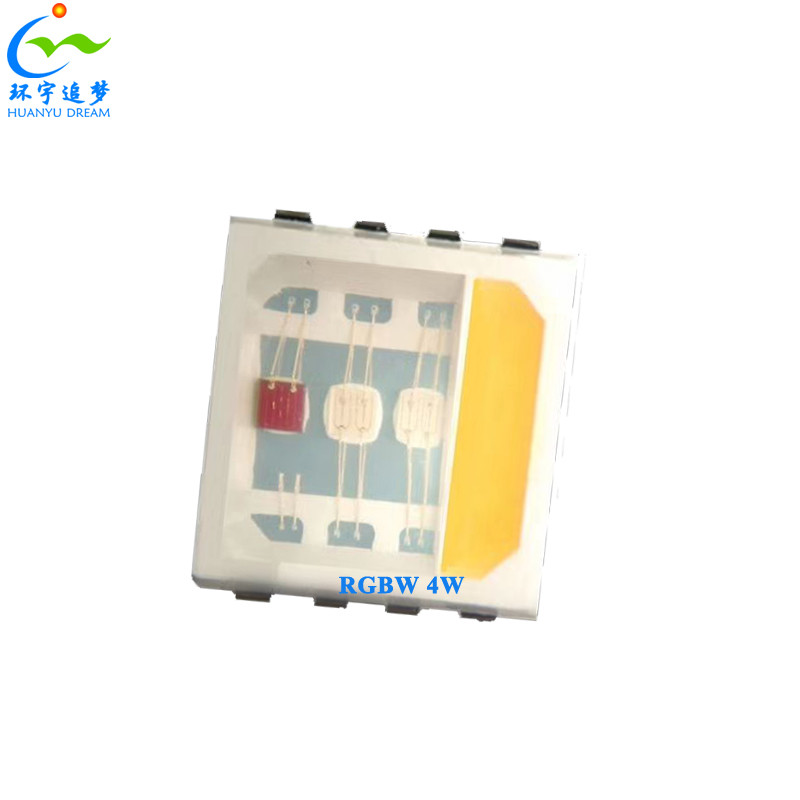

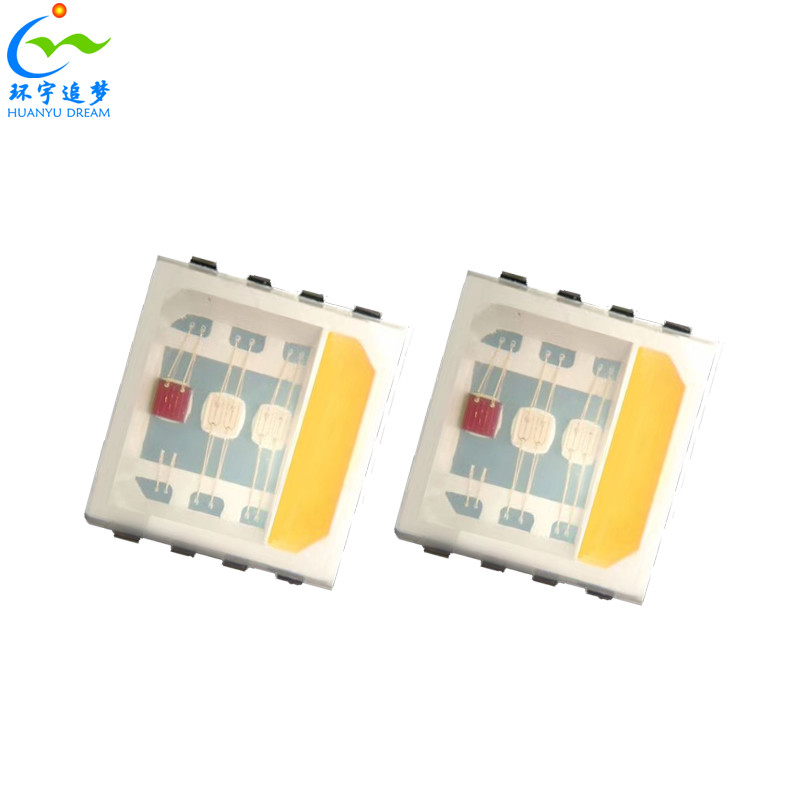

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

  • 1
  • 2
  • 3

Brand Name : HuanYu Dream

Model Number : HY-5054RGBWL160-4S-4W

Certification : Rohs

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Paypal,Ali Pay

Supply Ability : 200KKpcs/Month

Delivery Time : 7-9 Work Days

Packaging Details : 1000pcs/Reel

Type : 5054RGBW

Power : 4W

Voltage : 2.0-2.4V/3.0-3.6V

Current : 300mA*4

Warranties : 3 years

Spanlife : 50000 hours

Contact Now

4W 5054 RGBW Smd Led Chip Features

5054 SMD LEDRGBW 4in1
1W monochrome, 4W total 4 channel separate control
Mixing light and color is good
High brightness, High light efficiency.
Small, Convenient and Flexible.

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

Electrical/Optical Characteristics (At TA=25°C):

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

Parameter Symbol Conditions Min. Typ. Max. Units
DC Forward Voltage VF R IF=300mA 2.0 2.2 2.4 V
G IF=300mA 2.8 3.0 3.2
B IF=300mA 3.0 3.2 3.4
W IF=300mA 3.0 3.2 3.4
Viewing Angle 2Θ1/2 IF=300*4mA -- 120 -- Deg
Main wavelength λD R IF=300mA 620 -- 625 nm
G IF=300mA 520 -- 525
B IF=300mA 455 -- 460
CCT W IF=300mA 2900 -- 3100 K
Luminous flux Ф R IF=300mA 25 -- 30 Lm
G IF=300mA 50 -- 60
B IF=300mA 12 -- 17
W IF=300mA 75 -- 85

Absolute Maximum Rating(At TA=25°C):

Parameter Symbol Value Units
Operating current range IF 300*4 mA
Junction Temperature TJ 125 °C
Operating Temperature Range TOPR -20°C To +85°C

Pacakage Dimension(Units:mm)

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

5054 RGBW Appliation

  • High Power LED Lamp
  • Down light, wall lamp, garden light
  • Stage lighting
  • Spot lighting, ceiling light
  • Decorative lighting, show lighting Landscape lighting, lighting engineering

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

About US

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

4W High Power Multi Color SMD LED 5054 4 In 1 Red Green Blue White

Advantages

1. Good quality guarantee, 50000 hours lifespan, 3 years warranty.
2. Professional engineers and experienced workers.
3. Short delivery time, normally 1-7 working days.
4. Customized specifications available in CCT, CRI, Lumen, VF, Color , etc.
5. Various module type, such as SMD LED, 1-5W high power LED , 1-1500W integrated LED.


Service
· Reply your inquiry within 12 working hours
· Well-trained and experienced staffs to answer all your inquiries in fluent English.
· Strict quality control procedures before shipment.
· Customized design is available.OME and ODM are welcomed
· Delivery the goods to our customer all over the world with speed and precision.
