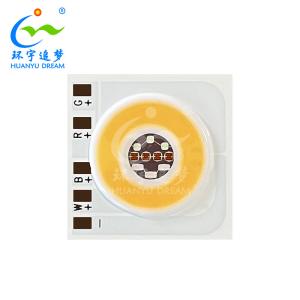

8W 1313 RGBW COB Led Chip Introduction
What is the difference between RGB RGBW and RGBCW/WW
RGB with three-channel LED chips that allow for a custom color mix.
These are perfect for applications where there is no need for a pure white. White light can be achieved with a RGB led chip by mixing the colours equally with equal brightness. However this can be hard to achieve and can cause discolouration. Therefore it is recommended chose a strip with a pure white channel to achieve a clean white colour.
RGBW and RGBCW/WW have one simple difference, RGBW have a single channel of pure white with one colour temperature. RGBCW/WW have a two white channels which allows adjustment between two colour temperatures.
There are a huge amount of colour changing LED strip lights including RGB, RGBW and Colour temperature adjustable LED tape. They all have benefits and limitations for different applications. Therefore it is important to buy the right strip that is suitable for the unique installation.
8W 1313 RGBW COB Led Chip Features
Dimension 13.5mm×13.5mm×1.0mm
Wide viewing angle : 120°
RoHS compliant
sulphation corrosion resistance
Manual Soldering

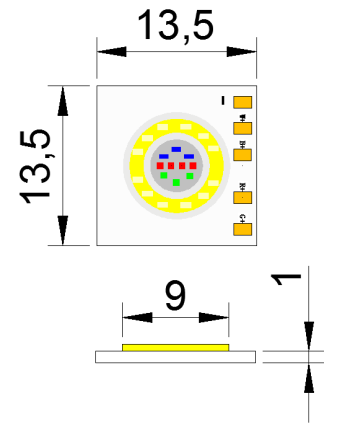

8W 1313 RGBW COB Led Chip Package Dimension
Red 4S1P
Green 3S1P
Blue 3S1P
White 3S4P
49PCS/Tray 10Tray/ESD Shieding Bag:490pcs
Electrical - Optical Characteristics at Ta=25℃
| Type | Symbol | Test condition | Value | Unit |
| | | | Min. | Typ. | Max. | |
| WaveLength(B) | λd | IF=150mA | 460 | -- | 470 | nm |
| WaveLength(R) | λd | IF=150mA | 620 | -- | 630 | nm |
| WaveLength(G) | λd | IF=150mA | 520 | -- | 530 | nm |
| Correlated Colour Temperature | CCT | IF=300mA | 2900 | | 3100 | k |
| Luminous Flux(B) | φv | IF=150mA | 20 | | 30 | LM |
| Luminous Flux(R) | φv | IF=150mA | 70 | | 90 | LM |
| Luminous Flux(G) | φv | IF=150mA | 80 | | 100 | LM |
| Luminous Flux(W) | φv | IF=300mA | 800 | | 1100 | LM |
| Forward Voltage(B) | VF | IF=150mA | 8 | | 10 | V |
| Forward Voltage(R) | VF | IF=150mA | 8 | | 10 | V |
| Forward Voltage(G) | VF | IF=150mA | 8 | | 10 | V |
| Forward Voltage(W) | VF | IF=300mA | 8 | | 10 | V |
| Power(B) | PD | IF=150mA | | 1.5 | | W |
| Power(R) | PD | IF=150mA | | 1.5 | | W |
| Power(G) | PD | IF=150mA | | 1.5 | | W |
| Power(W) | PD | IF=300mA | 3 | | 6 | W |
| Thermal resistance | Rth(j-s) | IF=150mA | -- | -- | 0.85 | ℃/W |
Absolute Maximum Ratings at Ta=25℃
| Parameter | Symbol | Rating | Units |
| Junction temperature | Tj | 115 | ℃ |
| Solder temperature | Ts | 350 | ℃ |
| Operating Temperature | Topr | -40 ~ + 85 | ℃ |
| Storage Temperature | Tstg | -40 ~ + 100 | ℃ |
8W 1313 RGBW COB Led Chip Applications
Smart lighting.
Stage lighting.
Spot light
Down light
General use.
Package Dimension
Production Process
Q1: Are you a factory or a trade company?
We are the manufacturer specialize in smd and cob led chips since 2013.
Q2: Can I get some samples for tests?
Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.
Q3: What about the lead time?
It will take 3-5 working days for sample and 7-25 working days for mass order.
Q4: How many years of warranty of products you offer? And how do you deal with the LED working issues?
We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.
Q5: Do you accept customized products?
A5: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.
