High Lumen 3030 SMD LED Chip 1W 3V 190lm/W 80Ra Energy Efficient

Name: High Lumen 3030 SMD LED Chip 1W 3V 190lmW 80Ra Energy Efficient
Brand: HuanYu Dream
Price: 1 USD

China High Lumen 3030 SMD LED Chip 1W 3V 190lm/W 80Ra Energy Efficient wholesale

Brand Name : HuanYu Dream

Model Number : HY-3030W27L150-2S

Certification : Rohs

Place of Origin : China

MOQ : 4000pcs

Price : Negotiable

Payment Terms : T/T, Paypal,Ali Pay

Supply Ability : 500000pcs/Day

Delivery Time : 7-9 Work Days

Packaging Details : 4k/Reel

Package size : 30*30mm

Color : 2700-2900K

Current : 300mA

Voltage : 2.8-3.0V

Customized : Availabe

CRI : Ra80

Lumen : 150-160LM

Viewing Angle(°) : 120

Contact Now

3030 Smd Led Chip--190lm/W At 1W 80Ra High Quality/Energy-Efficient/High Lumens

SMD 3030 @300mA up to 170-180lm/W Warm White 1W

Benefits

High lumens output
Low forward voltage
Low Power consumption
Increased energy saving
Common pacakge size increase design flexibility

Product Specifications

Electronic power	1W
Current(IF)	@300mA
VF	2.8-3.0V
CRI	80
Color temperature	2700-2900K	4000-4500K	5000-7000K
Lminous	150-160lm	150-160lm	160-180lm
Luminous Efficiency	170-180lm/W	175-185lm/W	180-190lm/W
WHOLE SIZE	3.0*3.0mm
CHIP	Sanan/Epistar
VIEW ANGLE	120°
Warranty	3 years
Leading time	7-10days

Note:

Wide range of CCTs from 2700K to 20000K and CRI from 80-95Ra.
Leading luminous flux in color and efficiency
Uniform Small source
Reliable package design for Commercial Applications

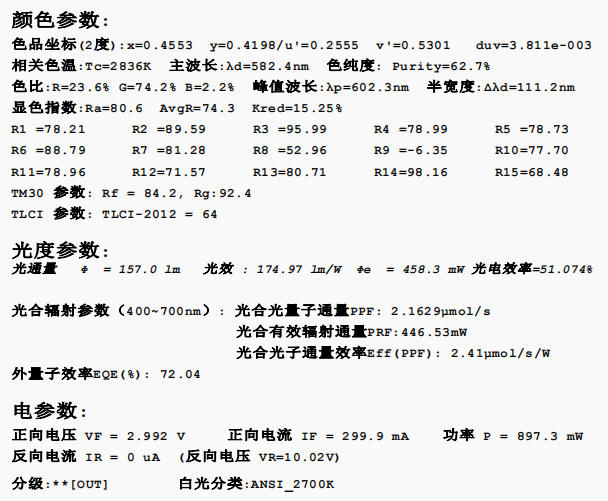

Test Report

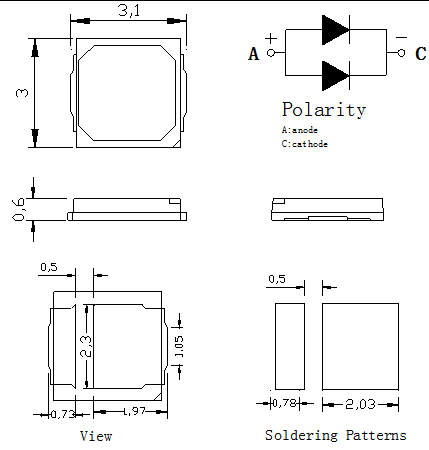

Dimension(Tolerance:+/-0.1mm. Unit:mm)

High Lumen 3030 SMD LED Chip 1W 3V 190lm/W 80Ra Energy Efficient

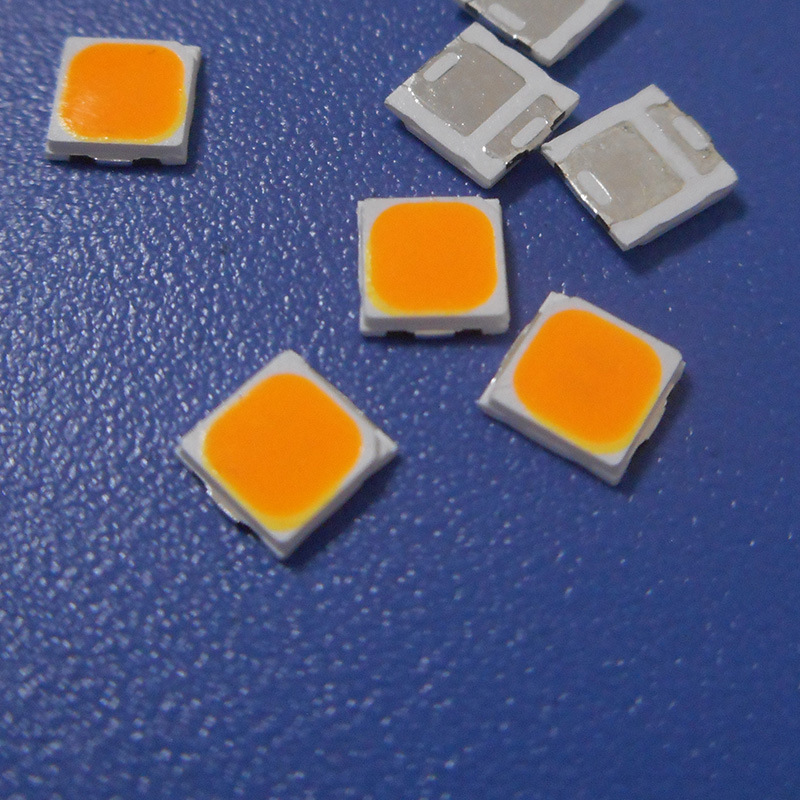

Details

High Lumen 3030 SMD LED Chip 1W 3V 190lm/W 80Ra Energy Efficient

Good Working Environmental

High Lumen 3030 SMD LED Chip 1W 3V 190lm/W 80Ra Energy Efficient

FAQ

Q1: Are you a factory or a trade company?

A: We are the manufacturer specialize in smd and cob led chips since 2013.

Q2: Can I get some samples for tests?
A: Yes, we can offer free samples, so you can have an intuitive understanding about our LED quality and performance. But our clients should pay for the shipping freight themselves.

Q3: What about the lead time?
A: Generally, it will take 3-5 working days for sample and 7-25 working days for mass order.

Q4: Do you accept customized products?
A: Yes, we can offer OEM and ODM service as per your request. Please kindly leave us messages about your requirements, our sales engineer will check the details as soon as possible.

Q5: How many years of warranty of products you offer? And how do you deal with the LED working issues?
A: We offer 3-year warranty by default, and longer warranty can be negotiated. If there is any problem with the product during the warranty, please feel free to contact us.

Q6: How to process the order?
A: 1. Let us know the requirements(size, color, power and quantity) of the products you need.
2. We will send you the quotation and check the stock.
3. We will send you proformer invoice after you confirm the samples.
4. You make the payment after checking the details.
5. We will arrange the delivery and continue to provide you the best service.
